STEP 180 DUO

Description

STEP 180 DUO Overview

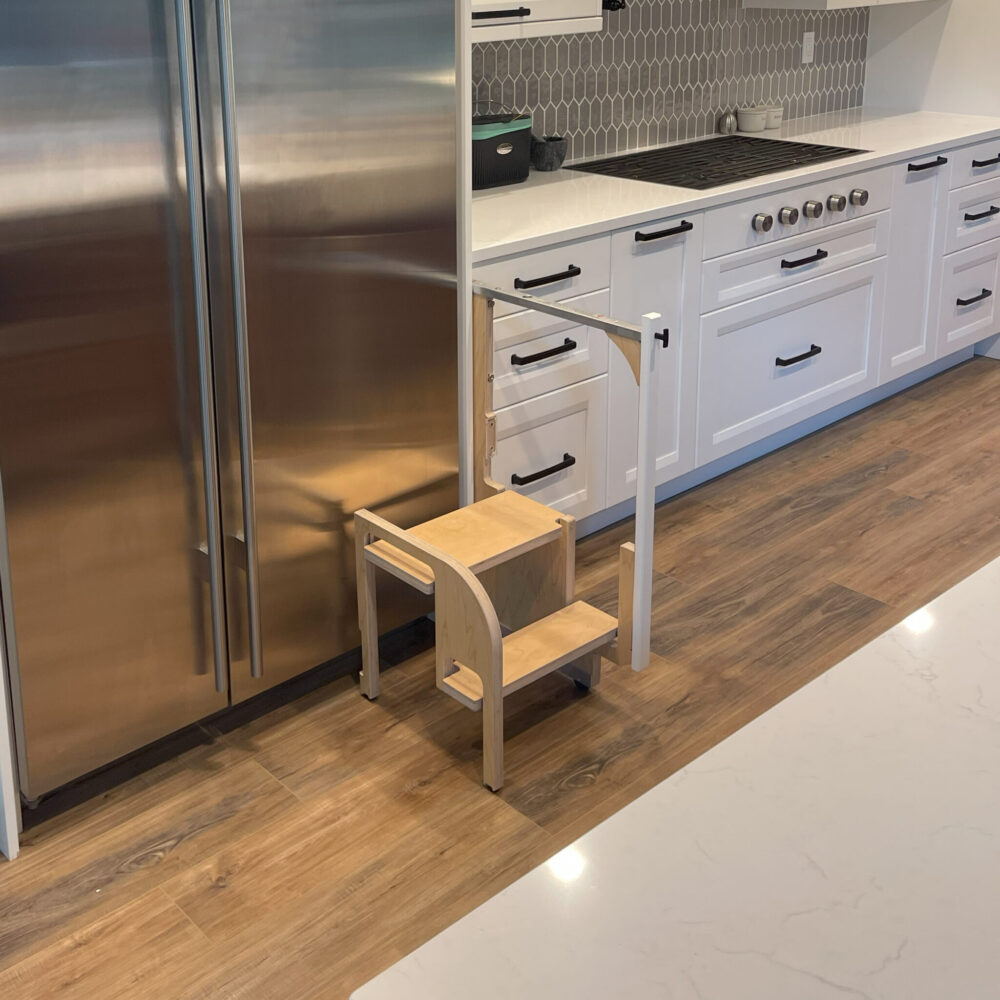

The STEP 180 DUO is our line of 2-step cabinet step stools. Taking up just 1 ½” (38mm) of cabinet width with its unique ability to flip 180 degrees, opening in either direction. These fixed step ladders give you the fast and easy access to a volume of upper cabinet space, and for children, easy access to sinks and helping at the countertop level.

Premium & Optional features of the STEP 180 DUO:

•   Spring-lift Assist
•   Adjustable Depth Positions
•   Available in 6 sizes
•   Optional Child-lock with on/off position
•   Optional Touch-to-Open
•   Optional 3″ Filler Kit
•   2 Year Warranty

This model is available in 6 sizes:

34” Models:

• Size  33 5/8 x 23″         (854 x 584mm) – (Recommended For U.S. Kitchen “Overlay or Inset Door Style”)
• Size  33 7/8 x 20 7/8″ (860 x 530mm) – (Recommended For U.S Bathrooms / Intl Kitchens)
• Size  33 7/8 x 26 7/8″ (860 x 683mm) – (Recommended For Fridge Depth Cabinet/ Max Clearance)
• Size  33 7/8 x 21 3/4″ (860 x 553mm) – (Recommended For Australian / Intl Kitchens) *

* Note for this model: toe-kick dimensions 5 ½″ (140mm) x 2 ½″(63.5mm)

32″ Models:

• Size  31 1/4 x 23″         (794 x 584mm) – (Recommended For U.S. ADA Kitchen “Overlay or Inset Door Style”)
• Size  31 1/4 x 20 7/8″ (794 x 530mm) – (Recommended For U.S Bathrooms / Intl Kitchens)

Sizing Notes:

STEP 180 DUO is designed to work with all standard and custom cabinets that are at least 33 5/8” (854 mm) tall for the 34” models (and at least 31 ¼″ (794 mm) tall for the 32″ models) Requires 1½” (38.1 mm) between cabinets.

• Touch-to-Open option requires a Minimum Height of 34 ¼” (870 mm) for 34″ Models
• Touch-to-Open option requires a Minimum Height of 31 7/8″ (810 mm) for 32″ Models

Design Features

This thoughtfully designed and finished step unit features:

• Available with Touch-to-Open Option (Click here for video)
• Cabinet Integrated with two-way deployment
• Needs only 1½” (38 mm) width between cabinets
• 6 ft reaching range for upper cabinet access
• 14 3/8” (36.5cm) top step height (or 13 ¼” (33.7cm) for 32″ models)
• Adjustable depth positions
• Wheel adjustment to adjust face panel alignment
• Integrated spring assistance
• Magnetic latch
• Full depth cut-to-size toe-kick extension
• Non-marking soft rubber wheels
• Rubber feet
• Available Integrated child-lock with on/off function
• 200 lb user weight rating
• Book matched grain on all wood parts

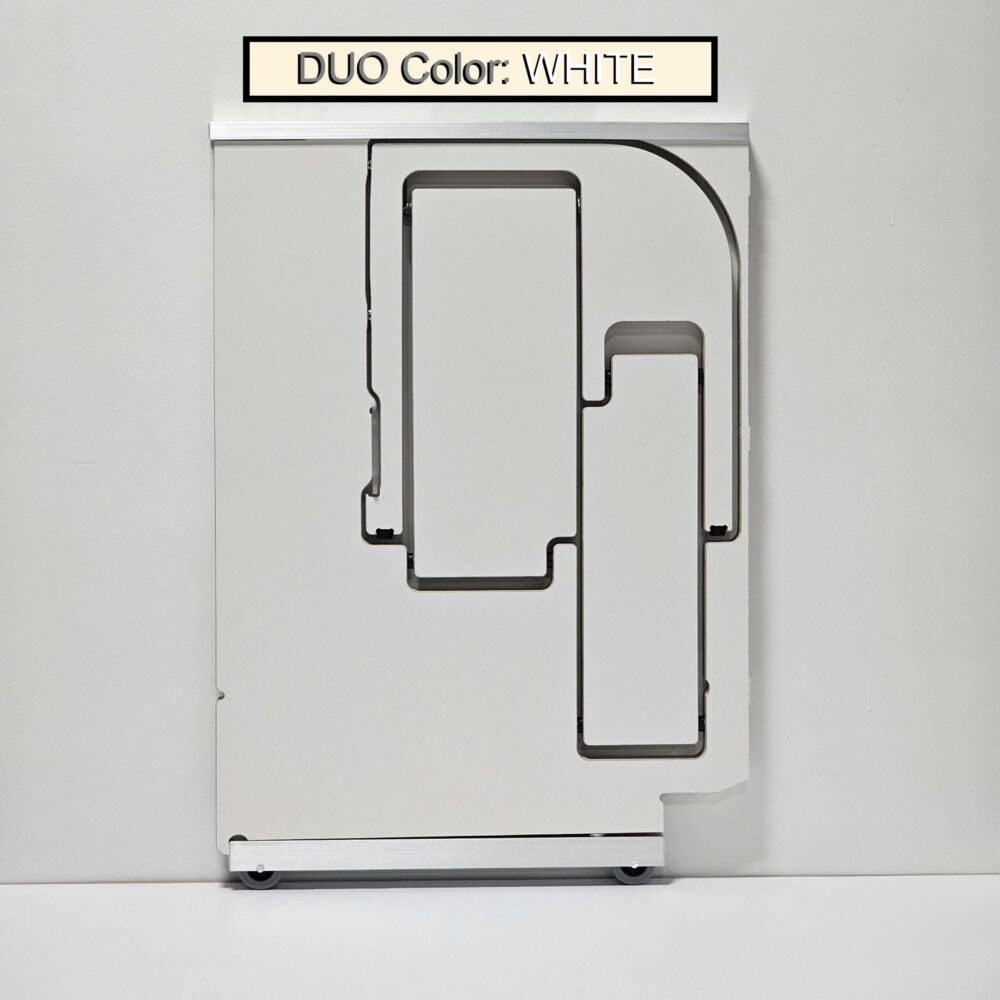

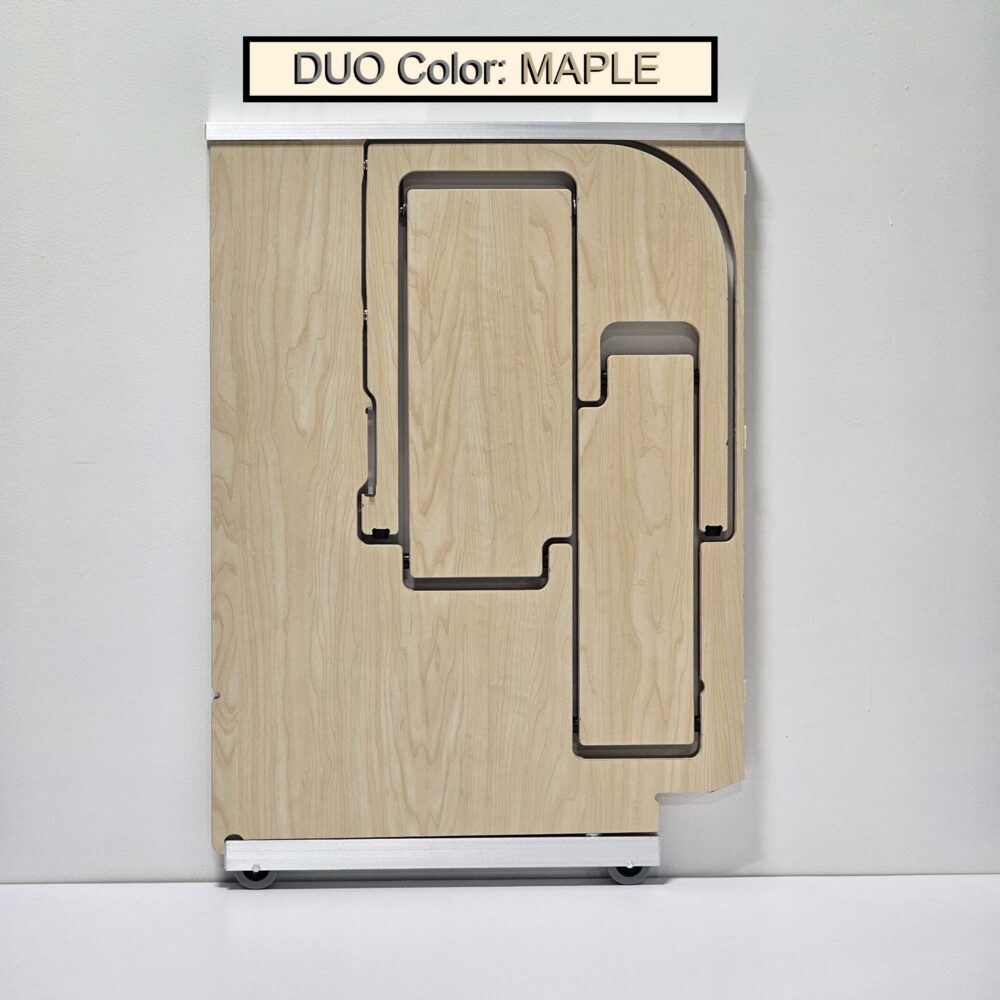

• 19-ply hardwood plywood with 2-sided Maple or White Laminate
• 2 year limited warranty
• Designed and manufactured in the U.S.A.

Major Materials:

• 19-ply hardwood plywood
• Aluminum railing, mounts and shafts
• Steel shaft and springs

What’s In The Box?

Included in your order:

• STEP 180 DUO step unit
• Mounting guide and spacers
• Lower guides pads
• Toe-kick extension
• Face panel bumper
• All mounting and other attachment hardware
• Installation and user manual

Does NOT include:

• Face panel
• Toe-kick panel
• Face panel pull knob/handle

Do you need a 3” Filler Installation Kit?

Although we designed the STEP 180 to be as slim as possible (1½” wide), the skinniest “industry standard” face panel is 3″ (76mm) wide. For those of you that don’t want to cut the panel to size or like the look of a wider face panel, the 3″ Filler Installation Kit is a good option.

This 3″ Filler Installation Kit also allows the STEP 180 to be installed in existing 3″ (76mm) openings or where a 3″ filler is located in some kitchens. If the 3″ filler is located in a useful spot, the 3″ Filler Installation Kit makes the STEP 180 much easier to install.

If you require the 3” Filler Installation Kit, you can select the option at checkout when ordering for your STEP 180.

If you have ordered a STEP 180 and discovered that you need a 3” Filler Installation Kit after the fact, you can order one or if you want to know more about the kit, you can do that here:

 3″ FILLER INSTALLATION KIT

Before you order…

Make sure that you look at the Documentation Page to ensure that the Step 180 DUO can be properly installed in the location you have planned. Click here for: STEP 180 DUO Installation Instructions (Downloadable PDF)

• Requires to be mounted to, and between an enclosed and stationary structure.
