Description

STEP 180 SOLO

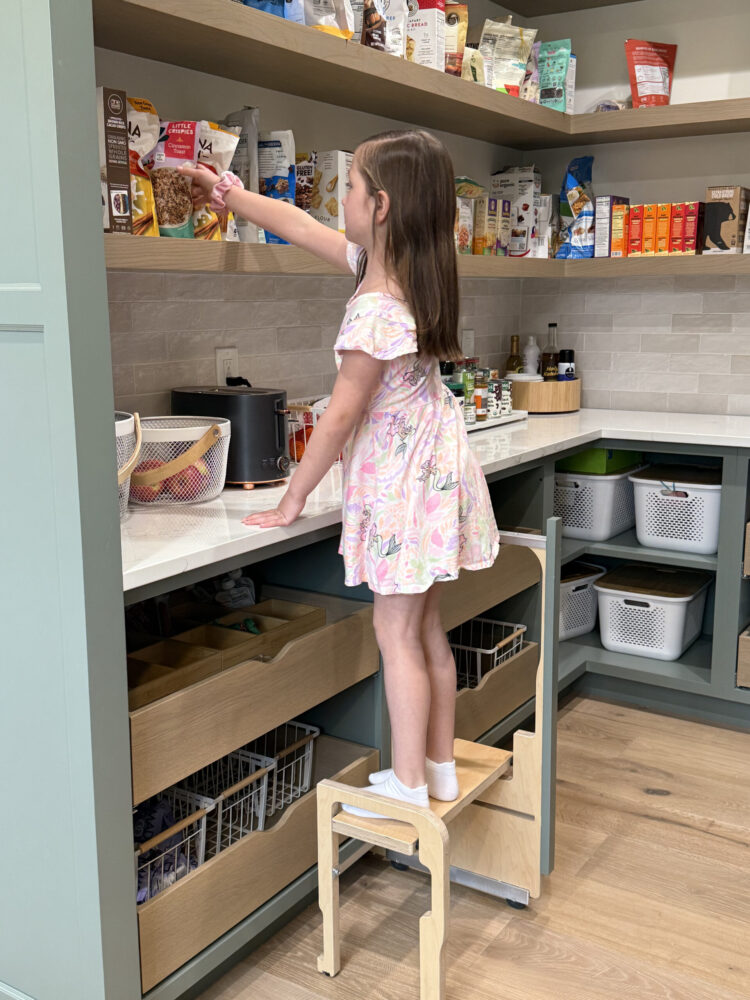

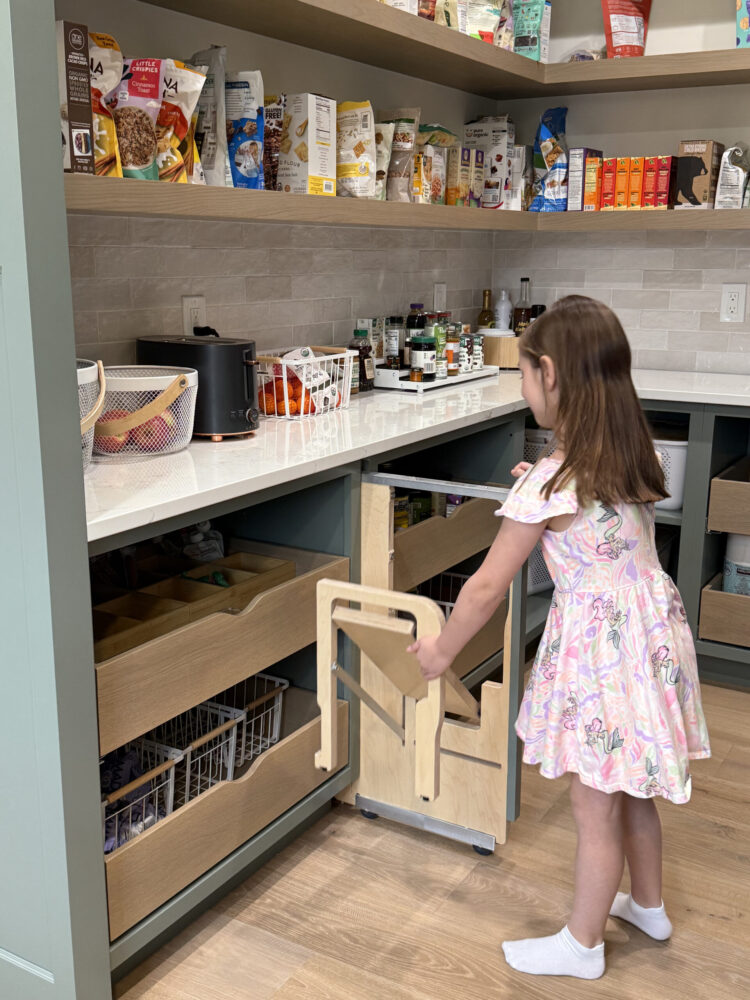

The STEP 180 SOLO Is A One Step Version Of Our Revolutionary STEP 180.

Available In 8 Sizes.

All Models Open To The Left And Right.

All Models Available With Touch-To-Open option.

Great for any Cabinet Installation, from as shallow as 16″ deep.

16″ (406 mm) And 18″ (450mm) Depth Models Great For Built-in Closet Cabinet Sizes

18″ (450mm) And 21″ (530mm) Depth Models Great For Bathroom Cabinet Sizes.

21″ (530mm) And 23″ (584 mm) Depth Models Great For Kitchens Cabinet Sizes

Choose Between (2) Height Sizes (In The Pull-Down Menu)

34” Models:

• Size  33 7/8″ x 16″ (860 x 406mm) – (Recommended For Built-in Closet)  No Toe-Kick
• Size  33 7/8″ x 17 7/8″ (860 x 454mm) – (Recommended For Built-in Closet And Bathrooms)  No Toe-Kick
• Size  33 7/8″ x 20 7/8″ (860 x 530mm) – (Recommended For Bathrooms / Kitchens)
• Size  33 7/8″ x 23″ (860 x 584mm) – (Recommended For “High Clearance” abutting Lg. Kitchen Appliances)

30″ Models:

• Size  30″ x 16″ (762 x 406mm) – (Recommended For Built-in Closet) No Toe-Kick
• Size  30″ x 17 7/8″ (762 x 454mm) – (Recommended For Built-in Closet And Children Bathrooms) No Toe-Kick
• Size  30″ x 20 7/8″ (762 x 530mm) – (Recommended For Children Bathrooms / ADA Kitchens)
• Size  30″ x 23″ (762 x 584mm) – (Recommended For “ADA High Clearance” abutting Lg. Kitchen Appliances)

Features:

• *NEW* Now available with Touch-to-Open Option (Click here for video)
• Cabinet Integrated With Two-Way Deployment.
• Requires Only 1½” (38.1 mm) Of Space Between Cabinets.
• Requires at least 16″ (406 mm) Depth Cabinets For Installation.
• Provides 6′ (1.83 m) Of Access To Upper Cabinets.
• 13 ¾” (34.9cm) top step height – (0r 12” (30.5cm) for 30″ models)
• Magnetic Latch.
• Cut-To-Size Toe-Kick Extension On 21″ And 23″ Deep Models.
• Non-Marking Rubber Wheels
• Rubber Feet.
• 200 lb (91 kg) Weight Rating.
• 19-Ply Hardwood Plywood With 2 Sided Maple Laminate.
• 2 Year Limited Warranty.

Want more  features?

More Steps?, Spring lift assist?, Child lock with on/off position Option?…..check out our STEP 180 PLUS models…..STEP 180 PLUS (link)

Includes:

• STEP 180 SOLO Unit.
• Mounting Guide And Spacers.
• Lower Guide Pads.
• Cut to Size Toe-Kick Extension (On 21″ And 23″ Models).
• Face Panel Bumper.
• All Mounting Hardware.
• Installation Guide And User Manual.

Major Materials:

• 19-Ply Hardwood Plywood.
• Aluminum Hardware And Components.

Does NOT include:

• Face Panel.
• Toe-Kick Panel
• Face Panel Pull Knob

STEP 180 SOLO is designed to work with all standard and custom cabinets that are at least 33 7/8” (860 mm) tall for the 34” models (and at least 30″ (762 mm) tall for the 30″ models) Requires 1½” (38.1 mm) between cabinets.

• Touch-to-Open option requires a Minimum Height of 34 ½” (875 mm) for 34″ Models
• Touch-to-Open option requires a Minimum Height of 30 5/8″ (778 mm) for 30″ Models

Do you need a 3” Filler Installation Kit?

Although we designed the STEP 180 to be as slim as possible (1½” wide), the skinniest “industry standard” face panel is 3″ wide. For those of you that don’t want to rip the panel to size or like the look of a wider face panel, the 3″ Filler Installation Kit is a good option.

This 3″Filler Installation Kit also allows the STEP 180 to be installed in existing 3″ openings or where a 3″ filler is located in some kitchens. If the 3″ filler is located in a useful spot, the 3″ Filler Installation Kit makes the STEP 180 super easy to install.

If you require the 3” Filler Installation Kit, you can select the option above when selecting specifications for your STEP 180.

If you have ordered a STEP 180 and discovered that you need a 3” Filler Installation Kit after the fact, you can order one or if you want to know more about the kit, you can do that here:

 3″ FILLER INSTALLATION KIT

Before you order…

Visit Our Documentation Page To Ensure You Have Selected The Correct Product For Your Design.

Click here for  STEP 180 SOLO Installation Instructions (Downloadable PDF)

• Requires to be mounted to, and between a enclosed and stationary structure.
