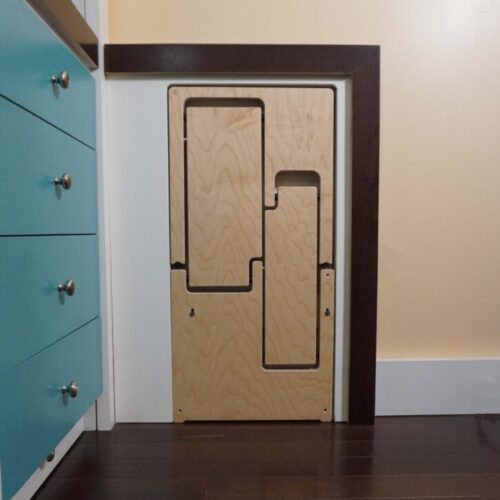

STEP 180 TRIO Step Ladder

Description

STEP 180 TRIO Step Ladder

The STEP 180 TRIO Step Ladder Is A 3 Step Version Of Our Revolutionary STEP 180.  Available In Two Size Options.

Great For Large  27 to 30″ (686-762mm) Or Deeper Cabinets Sizes. (Minimum Height Requirement is 41 ¼” (1048mm))

The STEP 180 TRIO is perfect for

• Laundry Rooms – In Between or beside built-in Washer and Dryer
• Fridge Depth Cabinets – 27″ or deeper cabinets
• Changing Stations

Choose Between (2) Depth Sizes (In The Pull-Down Menu)

• 26 7/8″ (686 mm) depth
• Optional 29″ (737 mm) depth

Features:

• *NEW* Now available with Touch-to-Open Option (Click here for video)
• Cabinet Integrated With Two-Way Deployment.
• Requires Only 1½” (38.1 mm) Of Space Between Cabinets.
• Requires 21″ (530 mm) Depth Cabinets For Installation.
• Provides 6′ (1.83 m) Of Access To Upper Cabinets.
• Top Step Height of 21 ½” (546mm)
• Gas Spring Assist.
• Magnetic Latch.
• Cut-To-Size Toe-Kick Extension.
• Non-Marking Rubber Wheels
• Rubber Feet.
• 200 lb (91 kg) Weight Rating.
• 19-Ply Hardwood Plywood Available In Maple Finished Laminate.
• 2 Year Limited Warranty.

Includes:

• STEP 180 TRIO Step Ladder.
• Mounting Guide And Spacers.
• Lower Guide Pads.
• Cut To Size Full Toe-Kick Extension.
• Face Panel Bumper.
• All Mounting Hardware.
• Installation Guide And User Manual.

Major Materials:

• Highest quality 19-Ply Hardwood Plywood.
• Aluminum Hardware And Components.

Does NOT include:

• Face Panel.
• Toe-Kick Panel
• Face Panel Pull Knob

Do you need a 3” Filler Installation Kit?

Although we designed the STEP 180 to be as slim as possible (1½” wide), the skinniest “industry standard” face panel is 3″ wide. For those of you that don’t want to rip the panel to size or like the look of a wider face panel, the 3″ Filler Installation Kit is a good option.

This 3″Filler Installation Kit also allows the STEP 180 to be installed in existing 3″ openings or where a 3″ filler is located in some kitchens. If the 3″ filler is located in a useful spot, the 3″ Filler Installation Kit makes the STEP 180 super easy to install.

If you require the 3” Filler Installation Kit, you can select the option above when selecting specifications for your STEP 180.

If you have ordered a STEP 180 and discovered that you need a 3” Filler Installation Kit after the fact, you can order one or if you want to know more about the kit, you can do that here:

3″ FILLER INSTALLATION KIT

Before you order…

TRIO is for Large Cabinets  (Will NOT fit in Standard size kitchen cabinets)

• Minimum Height needed is 41 ¼” (1048mm)
• Touch-to-Open option requires a Minimum Height of 41 7/8″ (1063mm)
• Minimum Depth needed is 26 7/8″ (686 mm)
• Requires to be mounted to, and between a enclosed and stationary structure.

Visit Our Documentation Page To Ensure You Have Selected The Correct Product For Your Design.

Click here for  STEP 180 TRIO Installation Instructions (Downloadable PDF)
